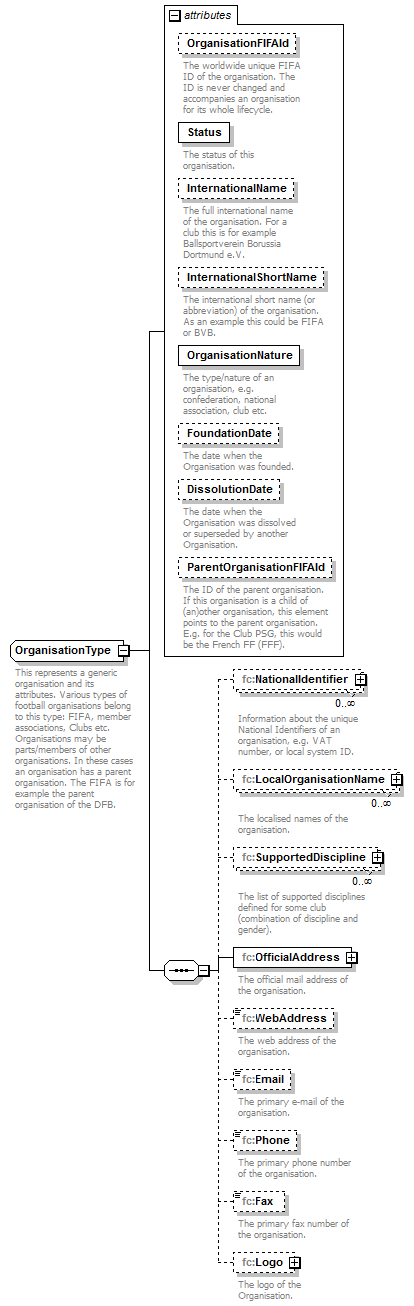

complexType OrganisationType

diagram
namespace	http://fifa.com/fc
children	fc:NationalIdentifier fc:LocalOrganisationName fc:SupportedDiscipline fc:OfficialAddress fc:WebAddress fc:Email fc:Phone fc:Fax fc:Logo
attributes	Name   Type   Use   Default   Fixed   Annotation OrganisationFIFAId   fc:FIFAIdentifier   optional         documentation The worldwide unique FIFA ID of the organisation. The ID is never changed and accompanies an organisation for its whole lifecycle. Status   fc:SimpleStatusType   required         documentation The status of this organisation. InternationalName   fc:String   optional         documentation The full international name of the organisation. For a club this is for example Ballsportverein Borussia Dortmund e.V. InternationalShortName   fc:String   optional         documentation The international short name (or abbreviation) of the organisation. As an example this could be FIFA or BVB. OrganisationNature   fc:OrganisationNatureType   required         documentation The type/nature of an organisation, e.g. confederation, national association, club etc. FoundationDate   fc:Date   optional         documentation The date when the Organisation was founded. DissolutionDate   fc:Date            documentation The date when the Organisation was dissolved or superseded by another Organisation. ParentOrganisationFIFAId   fc:FIFAIdentifier            documentation The ID of the parent organisation. If this organisation is a child of (an)other organisation, this element points to the parent organisation. E.g. for the Club PSG, this would be the French FF (FFF).
annotation	documentation This represents a generic organisation and its attributes. Various types of football organisations belong to this type: FIFA, member associations, Clubs etc. Organisations may be parts/members of other organisations. In these cases an organisation has a parent organisation. The FIFA is for example the parent organisation of the DFB.
source	<xsd:complexType name="OrganisationType">   <xsd:annotation>     <xsd:documentation>This represents a generic organisation and its attributes. Various types of football organisations belong to this type: FIFA, member associations, Clubs etc. Organisations may be parts/members of other organisations. In these cases an organisation has a parent organisation. The FIFA is for example the parent organisation of the DFB.</xsd:documentation>   </xsd:annotation>   <xsd:sequence>     <xsd:element name="NationalIdentifier" type="fc:NationalIdentifierType" nillable="false" minOccurs="0" maxOccurs="unbounded">       <xsd:annotation>         <xsd:documentation>Information about the unique National Identifiers of an organisation, e.g. VAT number, or local system ID.</xsd:documentation>       </xsd:annotation>     </xsd:element>     <xsd:element name="LocalOrganisationName" type="fc:LocalNameType" nillable="false" minOccurs="0" maxOccurs="unbounded">       <xsd:annotation>         <xsd:documentation>The localised names of the organisation.</xsd:documentation>       </xsd:annotation>     </xsd:element>     <xsd:element name="SupportedDiscipline" type="fc:SupportedDisciplineType" nillable="true" minOccurs="0" maxOccurs="unbounded">       <xsd:annotation>         <xsd:documentation>The list of supported disciplines defined for some club (combination of discipline and gender).</xsd:documentation>       </xsd:annotation>     </xsd:element>     <xsd:element name="OfficialAddress" type="fc:AddressType" nillable="false">       <xsd:annotation>         <xsd:documentation>The official mail address of the organisation.</xsd:documentation>       </xsd:annotation>     </xsd:element>     <xsd:element name="WebAddress" type="fc:WebAddressType" nillable="false" minOccurs="0">       <xsd:annotation>         <xsd:documentation>The web address of the organisation.</xsd:documentation>       </xsd:annotation>     </xsd:element>     <xsd:element name="Email" type="fc:EmailAddressType" nillable="false" minOccurs="0">       <xsd:annotation>         <xsd:documentation>The primary e-mail of the organisation.</xsd:documentation>       </xsd:annotation>     </xsd:element>     <xsd:element name="Phone" type="fc:PhoneNumberType" nillable="false" minOccurs="0">       <xsd:annotation>         <xsd:documentation>The primary phone number of the organisation.</xsd:documentation>       </xsd:annotation>     </xsd:element>     <xsd:element name="Fax" type="fc:PhoneNumberType" nillable="false" minOccurs="0">       <xsd:annotation>         <xsd:documentation>The primary fax number of the organisation.</xsd:documentation>       </xsd:annotation>     </xsd:element>     <xsd:element name="Logo" type="fc:PictureType" nillable="false" minOccurs="0">       <xsd:annotation>         <xsd:documentation>The logo of the Organisation.</xsd:documentation>       </xsd:annotation>     </xsd:element>   </xsd:sequence>   <xsd:attribute name="OrganisationFIFAId" type="fc:FIFAIdentifier" use="optional">     <xsd:annotation>       <xsd:documentation>The worldwide unique FIFA ID of the organisation. The ID is never changed and accompanies an organisation for its whole lifecycle.</xsd:documentation>     </xsd:annotation>   </xsd:attribute>   <xsd:attribute name="Status" type="fc:SimpleStatusType" use="required">     <xsd:annotation>       <xsd:documentation>The status of this organisation.</xsd:documentation>     </xsd:annotation>   </xsd:attribute>   <xsd:attribute name="InternationalName" type="fc:String" use="optional">     <xsd:annotation>       <xsd:documentation>The full international name of the organisation. For a club this is for example Ballsportverein Borussia Dortmund e.V.</xsd:documentation>     </xsd:annotation>   </xsd:attribute>   <xsd:attribute name="InternationalShortName" type="fc:String" use="optional">     <xsd:annotation>       <xsd:documentation>The international short name (or abbreviation) of the organisation. As an example this could be FIFA or BVB.</xsd:documentation>     </xsd:annotation>   </xsd:attribute>   <xsd:attribute name="OrganisationNature" type="fc:OrganisationNatureType" use="required">     <xsd:annotation>       <xsd:documentation>The type/nature of an organisation, e.g. confederation, national association, club etc.</xsd:documentation>     </xsd:annotation>   </xsd:attribute>   <xsd:attribute name="FoundationDate" type="fc:Date" use="optional">     <xsd:annotation>       <xsd:documentation>The date when the Organisation was founded.</xsd:documentation>     </xsd:annotation>   </xsd:attribute>   <xsd:attribute name="DissolutionDate" type="fc:Date">     <xsd:annotation>       <xsd:documentation>The date when the Organisation was dissolved or superseded by another Organisation.</xsd:documentation>     </xsd:annotation>   </xsd:attribute>   <xsd:attribute name="ParentOrganisationFIFAId" type="fc:FIFAIdentifier">     <xsd:annotation>       <xsd:documentation>The ID of the parent organisation. If this organisation is a child of (an)other organisation, this element points to the parent organisation. E.g. for the Club PSG, this would be the French FF (FFF).</xsd:documentation>     </xsd:annotation>   </xsd:attribute> </xsd:complexType>

attribute OrganisationType/@OrganisationFIFAId

type	fc:FIFAIdentifier
properties	use  optional
facets	Kind  Value  Annotation length  10 pattern  [0-9]{10}
annotation	documentation The worldwide unique FIFA ID of the organisation. The ID is never changed and accompanies an organisation for its whole lifecycle.
source	<xsd:attribute name="OrganisationFIFAId" type="fc:FIFAIdentifier" use="optional">   <xsd:annotation>     <xsd:documentation>The worldwide unique FIFA ID of the organisation. The ID is never changed and accompanies an organisation for its whole lifecycle.</xsd:documentation>   </xsd:annotation> </xsd:attribute>

attribute OrganisationType/@Status

type	fc:SimpleStatusType
properties	use  required
facets	Kind  Value  Annotation enumeration  active documentation An active organisation, e.g. an operating stadium. enumeration  inactive documentation An inactive organisation, e.g. a dissolved club. enumeration  pending documentation A pending registration, e.g. waiting to be confirmed.
annotation	documentation The status of this organisation.
source	<xsd:attribute name="Status" type="fc:SimpleStatusType" use="required">   <xsd:annotation>     <xsd:documentation>The status of this organisation.</xsd:documentation>   </xsd:annotation> </xsd:attribute>

attribute OrganisationType/@InternationalName

type	fc:String
properties	use  optional
annotation	documentation The full international name of the organisation. For a club this is for example Ballsportverein Borussia Dortmund e.V.
source	<xsd:attribute name="InternationalName" type="fc:String" use="optional">   <xsd:annotation>     <xsd:documentation>The full international name of the organisation. For a club this is for example Ballsportverein Borussia Dortmund e.V.</xsd:documentation>   </xsd:annotation> </xsd:attribute>

attribute OrganisationType/@InternationalShortName

type	fc:String
properties	use  optional
annotation	documentation The international short name (or abbreviation) of the organisation. As an example this could be FIFA or BVB.
source	<xsd:attribute name="InternationalShortName" type="fc:String" use="optional">   <xsd:annotation>     <xsd:documentation>The international short name (or abbreviation) of the organisation. As an example this could be FIFA or BVB.</xsd:documentation>   </xsd:annotation> </xsd:attribute>

attribute OrganisationType/@OrganisationNature

type	fc:OrganisationNatureType
properties	use  required
facets	Kind  Value  Annotation enumeration  WorldFederation documentation The nature type of FIFA. enumeration  Confederation documentation Confederations such as UEFA, CONMEBOL or AFC. enumeration  NationalAssociation documentation National associations/federations, such as the DFB or FFF. enumeration  RegionalAssociation documentation Regional associations, such as Northern German Football Association. enumeration  Club documentation Club, such as FC Bayern Munich. enumeration  Team documentation Club's Team, such as women team of VfL Wolfsburg. enumeration  School documentation School, such as Jeppe High School for Boys. enumeration  MA Academy documentation School, such as Boca Juniors Reserves and Academy. enumeration  Grassroot Programme documentation School, such as Mauritius Grassroots programme. enumeration  Private Academy documentation School, such as Elite Football Academy. enumeration  College documentation College, such as St John's College. enumeration  University documentation University, such as Universidad de Las Palmas CF footballers. enumeration  Other documentation Other type of an organisation.
annotation	documentation The type/nature of an organisation, e.g. confederation, national association, club etc.
source	<xsd:attribute name="OrganisationNature" type="fc:OrganisationNatureType" use="required">   <xsd:annotation>     <xsd:documentation>The type/nature of an organisation, e.g. confederation, national association, club etc.</xsd:documentation>   </xsd:annotation> </xsd:attribute>

attribute OrganisationType/@FoundationDate

type	fc:Date
properties	use  optional
facets	Kind  Value  Annotation pattern  \d{4}[-]\d{2}[-]\d{2}
annotation	documentation The date when the Organisation was founded.
source	<xsd:attribute name="FoundationDate" type="fc:Date" use="optional">   <xsd:annotation>     <xsd:documentation>The date when the Organisation was founded.</xsd:documentation>   </xsd:annotation> </xsd:attribute>

attribute OrganisationType/@DissolutionDate

type	fc:Date
facets	Kind  Value  Annotation pattern  \d{4}[-]\d{2}[-]\d{2}
annotation	documentation The date when the Organisation was dissolved or superseded by another Organisation.
source	<xsd:attribute name="DissolutionDate" type="fc:Date">   <xsd:annotation>     <xsd:documentation>The date when the Organisation was dissolved or superseded by another Organisation.</xsd:documentation>   </xsd:annotation> </xsd:attribute>

attribute OrganisationType/@ParentOrganisationFIFAId

type	fc:FIFAIdentifier
facets	Kind  Value  Annotation length  10 pattern  [0-9]{10}
annotation	documentation The ID of the parent organisation. If this organisation is a child of (an)other organisation, this element points to the parent organisation. E.g. for the Club PSG, this would be the French FF (FFF).
source	<xsd:attribute name="ParentOrganisationFIFAId" type="fc:FIFAIdentifier">   <xsd:annotation>     <xsd:documentation>The ID of the parent organisation. If this organisation is a child of (an)other organisation, this element points to the parent organisation. E.g. for the Club PSG, this would be the French FF (FFF).</xsd:documentation>   </xsd:annotation> </xsd:attribute>

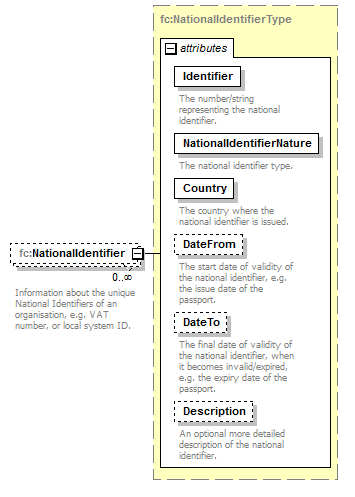

element OrganisationType/NationalIdentifier

diagram
namespace	http://fifa.com/fc
type	fc:NationalIdentifierType
properties	minOcc  0 maxOcc  unbounded content  complex nillable  false
attributes	Name   Type   Use   Default   Fixed   Annotation Identifier   fc:String   required         documentation The number/string representing the national identifier. NationalIdentifierNature   fc:NationalIdentifierNatureType   required         documentation The national identifier type. Country   ISO3166CountyCode   required         documentation The country where the national identifier is issued. DateFrom   fc:Date   optional         documentation The start date of validity of the national identifier, e.g. the issue date of the passport. DateTo   fc:Date   optional         documentation The final date of validity of the national identifier, when it becomes invalid/expired, e.g. the expiry date of the passport. Description   fc:String   optional         documentation An optional more detailed description of the national identifier.
annotation	documentation Information about the unique National Identifiers of an organisation, e.g. VAT number, or local system ID.
source	<xsd:element name="NationalIdentifier" type="fc:NationalIdentifierType" nillable="false" minOccurs="0" maxOccurs="unbounded">   <xsd:annotation>     <xsd:documentation>Information about the unique National Identifiers of an organisation, e.g. VAT number, or local system ID.</xsd:documentation>   </xsd:annotation> </xsd:element>

element OrganisationType/LocalOrganisationName

diagram
namespace	http://fifa.com/fc
type	fc:LocalNameType
properties	minOcc  0 maxOcc  unbounded content  complex nillable  false
attributes	Name   Type   Use   Default   Fixed   Annotation Language   ISO639-2Type   required         documentation The language of this localised string. Name   fc:String   required         documentation The localised/native name. ShortName               documentation The localised native short name.
annotation	documentation The localised names of the organisation.
source	<xsd:element name="LocalOrganisationName" type="fc:LocalNameType" nillable="false" minOccurs="0" maxOccurs="unbounded">   <xsd:annotation>     <xsd:documentation>The localised names of the organisation.</xsd:documentation>   </xsd:annotation> </xsd:element>

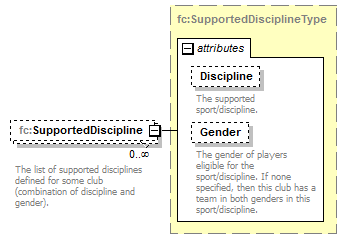

element OrganisationType/SupportedDiscipline

diagram
namespace	http://fifa.com/fc
type	fc:SupportedDisciplineType
properties	minOcc  0 maxOcc  unbounded content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   Annotation Discipline   fc:DisciplineType            documentation The supported sport/discipline. Gender   fc:GenderType            documentation The gender of players eligible for the sport/discipline. If none specified, then this club has a team in both genders in this sport/discipline.
annotation	documentation The list of supported disciplines defined for some club (combination of discipline and gender).
source	<xsd:element name="SupportedDiscipline" type="fc:SupportedDisciplineType" nillable="true" minOccurs="0" maxOccurs="unbounded">   <xsd:annotation>     <xsd:documentation>The list of supported disciplines defined for some club (combination of discipline and gender).</xsd:documentation>   </xsd:annotation> </xsd:element>

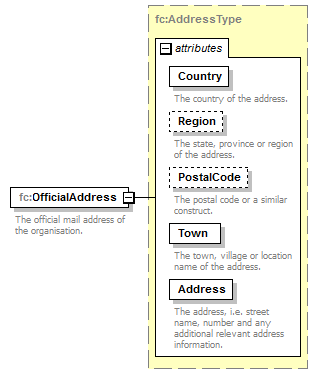

element OrganisationType/OfficialAddress

diagram
namespace	http://fifa.com/fc
type	fc:AddressType
properties	content  complex nillable  false
attributes	Name   Type   Use   Default   Fixed   Annotation Country   ISO3166CountyCode   required         documentation The country of the address. Region   fc:String   optional         documentation The state, province or region of the address. PostalCode   fc:String   optional         documentation The postal code or a similar construct. Town   fc:String   required         documentation The town, village or location name of the address. Address   fc:String   required         documentation The address, i.e. street name, number and any additional relevant address information.
annotation	documentation The official mail address of the organisation.
source	<xsd:element name="OfficialAddress" type="fc:AddressType" nillable="false">   <xsd:annotation>     <xsd:documentation>The official mail address of the organisation.</xsd:documentation>   </xsd:annotation> </xsd:element>

element OrganisationType/WebAddress

diagram
namespace	http://fifa.com/fc
type	fc:WebAddressType
properties	minOcc  0 maxOcc  1 content  simple nillable  false
facets	Kind  Value  Annotation pattern  [hH][tT]{2}[pP][sS]{0,1}://.*
annotation	documentation The web address of the organisation.
source	<xsd:element name="WebAddress" type="fc:WebAddressType" nillable="false" minOccurs="0">   <xsd:annotation>     <xsd:documentation>The web address of the organisation.</xsd:documentation>   </xsd:annotation> </xsd:element>

element OrganisationType/Email

diagram
namespace	http://fifa.com/fc
type	fc:EmailAddressType
properties	minOcc  0 maxOcc  1 content  simple nillable  false
facets	Kind  Value  Annotation pattern  [^@]+@[^\.]+\..+
annotation	documentation The primary e-mail of the organisation.
source	<xsd:element name="Email" type="fc:EmailAddressType" nillable="false" minOccurs="0">   <xsd:annotation>     <xsd:documentation>The primary e-mail of the organisation.</xsd:documentation>   </xsd:annotation> </xsd:element>

element OrganisationType/Phone

diagram
namespace	http://fifa.com/fc
type	fc:PhoneNumberType
properties	minOcc  0 maxOcc  1 content  simple nillable  false
facets	Kind  Value  Annotation pattern  \+[0-9]{1,3} [0-9]{1,3} [0-9]{3} [0-9]{3,4}
annotation	documentation The primary phone number of the organisation.
source	<xsd:element name="Phone" type="fc:PhoneNumberType" nillable="false" minOccurs="0">   <xsd:annotation>     <xsd:documentation>The primary phone number of the organisation.</xsd:documentation>   </xsd:annotation> </xsd:element>

element OrganisationType/Fax

diagram
namespace	http://fifa.com/fc
type	fc:PhoneNumberType
properties	minOcc  0 maxOcc  1 content  simple nillable  false
facets	Kind  Value  Annotation pattern  \+[0-9]{1,3} [0-9]{1,3} [0-9]{3} [0-9]{3,4}
annotation	documentation The primary fax number of the organisation.
source	<xsd:element name="Fax" type="fc:PhoneNumberType" nillable="false" minOccurs="0">   <xsd:annotation>     <xsd:documentation>The primary fax number of the organisation.</xsd:documentation>   </xsd:annotation> </xsd:element>

element OrganisationType/Logo

diagram
namespace	http://fifa.com/fc
type	fc:PictureType
properties	minOcc  0 maxOcc  1 content  complex nillable  false
children	fc:PictureEmbedded fc:PictureLink
annotation	documentation The logo of the Organisation.
source	<xsd:element name="Logo" type="fc:PictureType" nillable="false" minOccurs="0">   <xsd:annotation>     <xsd:documentation>The logo of the Organisation.</xsd:documentation>   </xsd:annotation> </xsd:element>
